Wireless Sensors That Work

Home
/
Devices

Reliable, wireless sensors with up to 5+ years of battery life using proven LoRaWAN technology

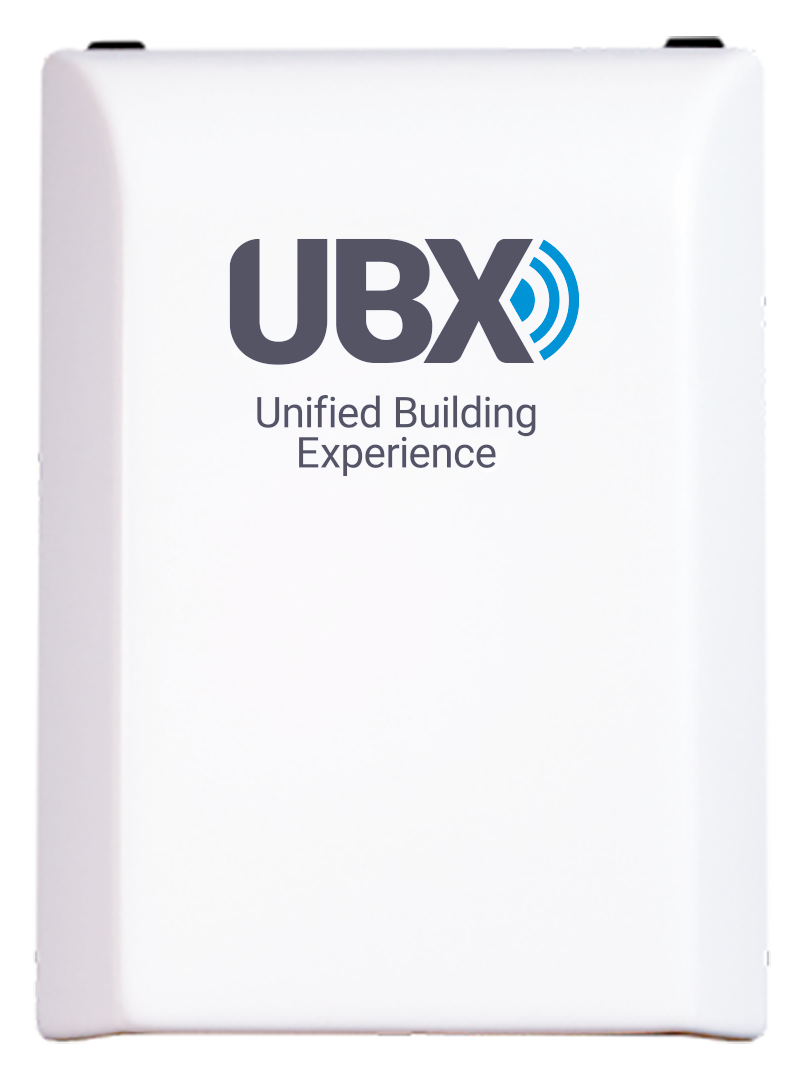

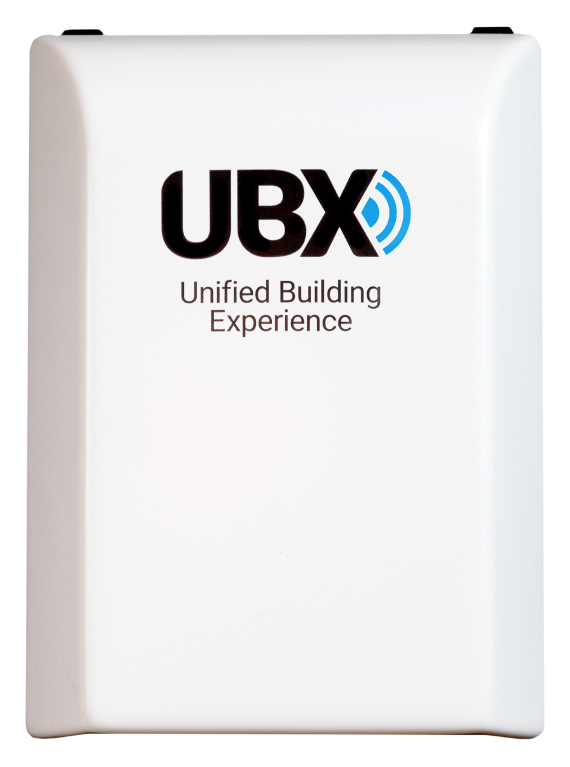

UBX Hub

UBX’s secure Cloud service provides your window to all sensors, controllers, analytics, and reports within the UBX system and also provides access to all the Application Suite tools including EZ Floor Plans, Smart Portfolio, Reporting, Data Visualization, Document Vault, and more.

Details:

  • Wireless LoRaWAN hub with LTE connection to UBX Cloud, automatically connects with sensors attached to your account, no building IT network connection needed
  • Compatible with all UBX solutions making it easy to manage all of your buildings assets

Options:

  • Add an additional hub for plug-n-play redundant hub seamlessly works with all additional hubs to provide redundancy

Sensors

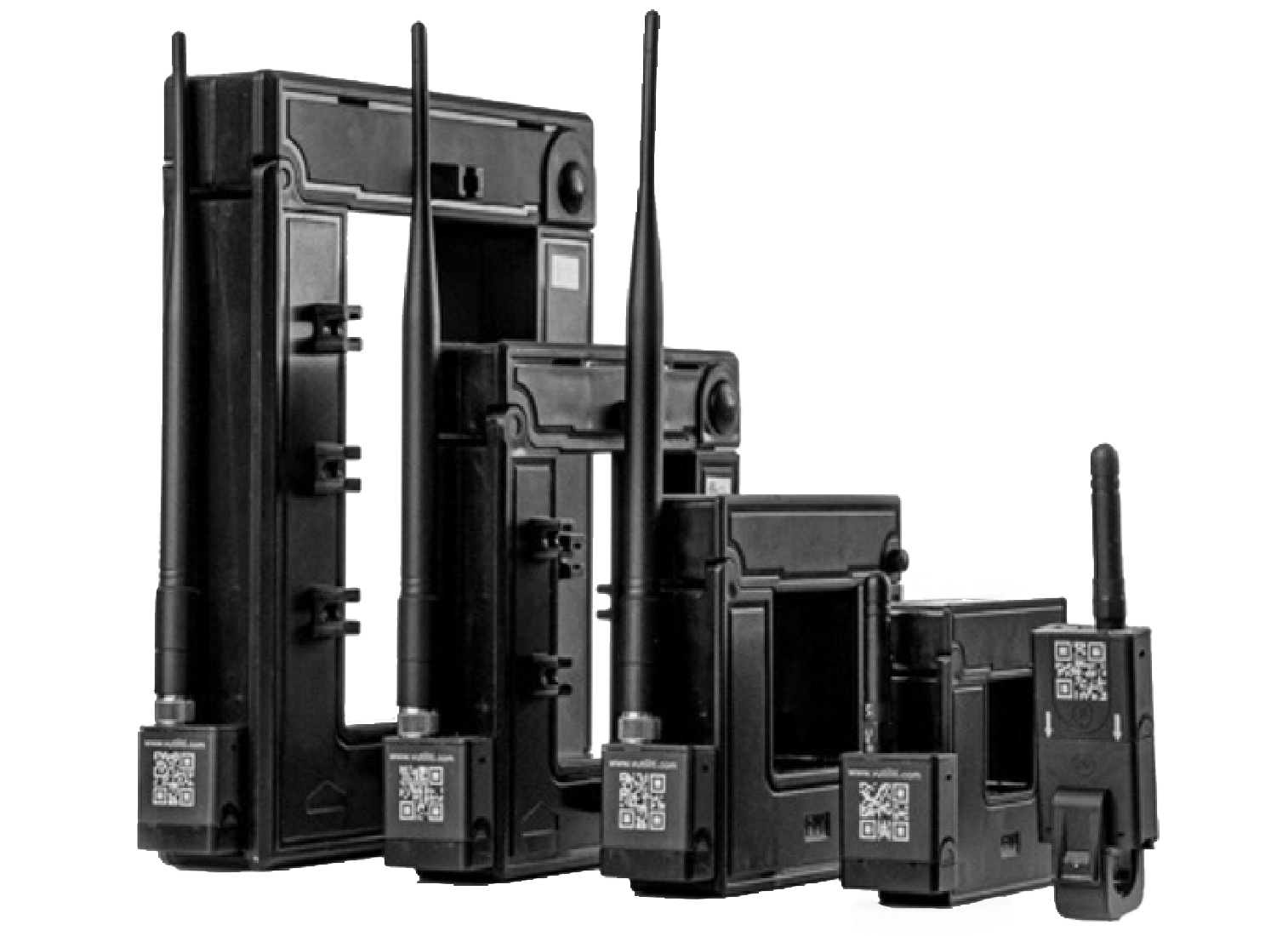

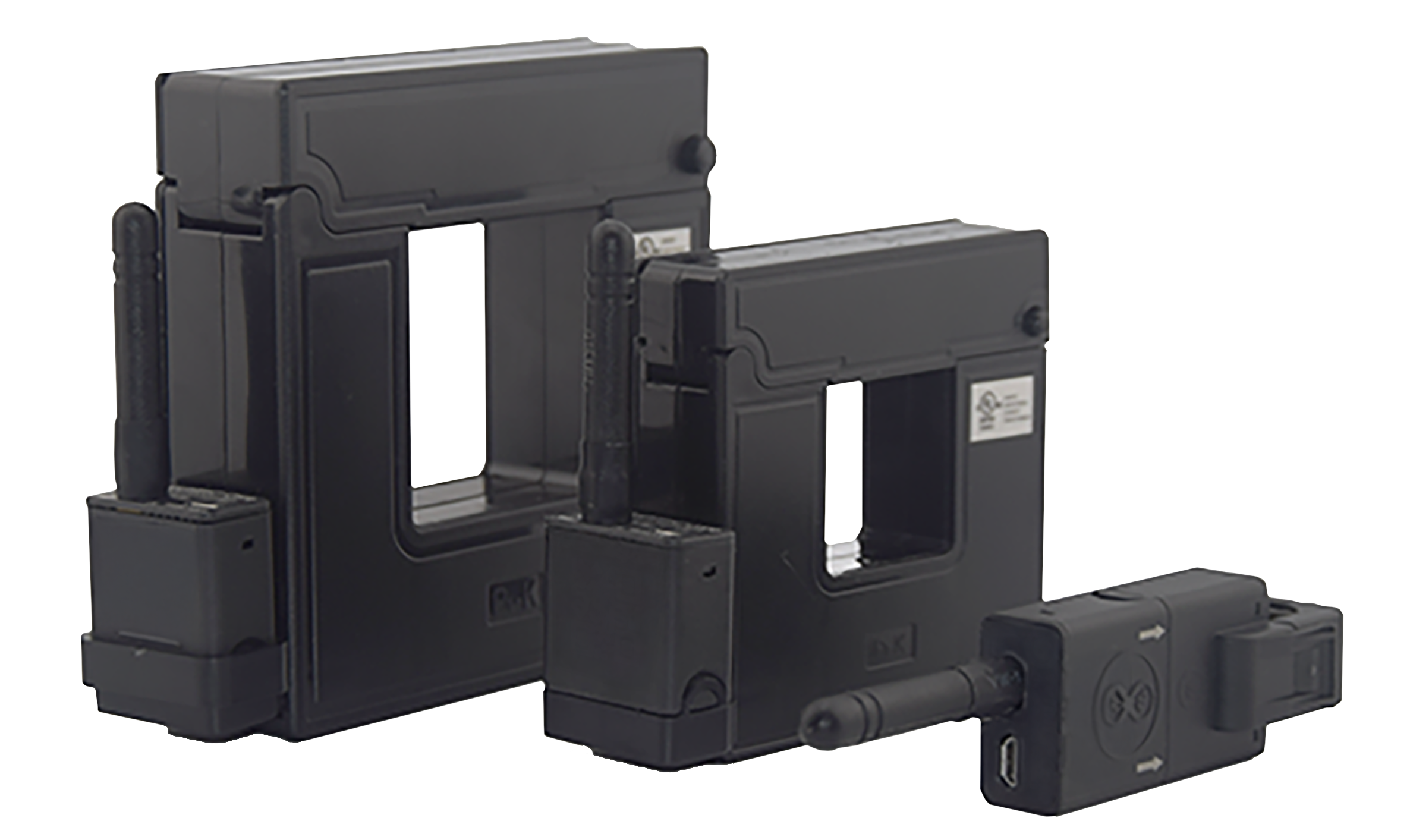

Energy Monitoring

UBX’s 1 & 3-phase Energy Monitoring solutions makes it easy to track, report, and optimize your buildings energy consumption. The low cost, hassle-free wireless installation saves you time, money, and avoids the need to go through lengthy approval processes. Most sensors do not need an electrician to install and are simply clamped on the power cable or attached to the wall and are self powered without the need to ever replace a battery.

Details:

  • Self powered, long range, resilient, LoRaWAN wireless enables flexible installation locations including individual assets, sub-panels, and panels

Options:

  • UBX Energy Monitoring 300A Sensor - 16×16 mm up to 300A
  • UBX Energy Monitoring 400A Sensor - 32×32 mm up to 400A
  • UBX Energy Monitoring 5000A Sensor - 105×155 mm up to 5000A

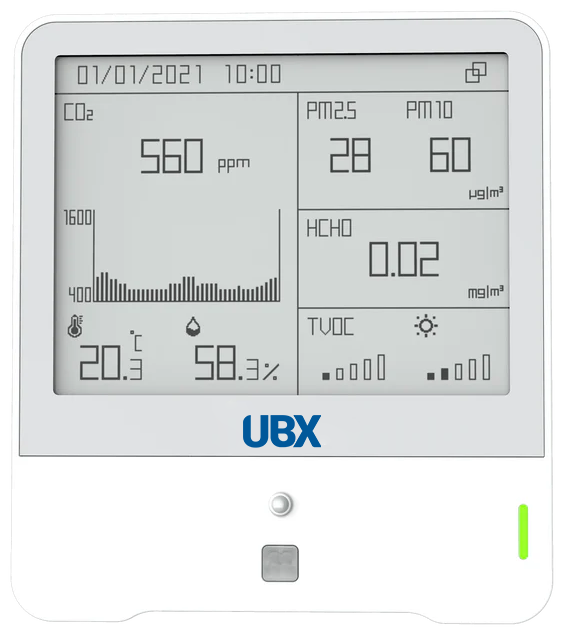

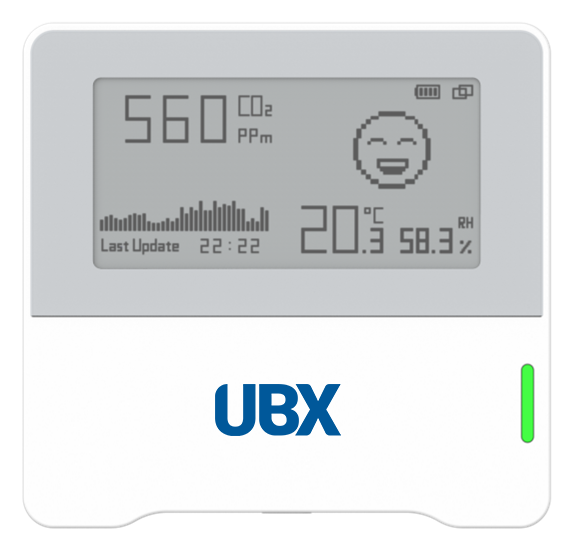

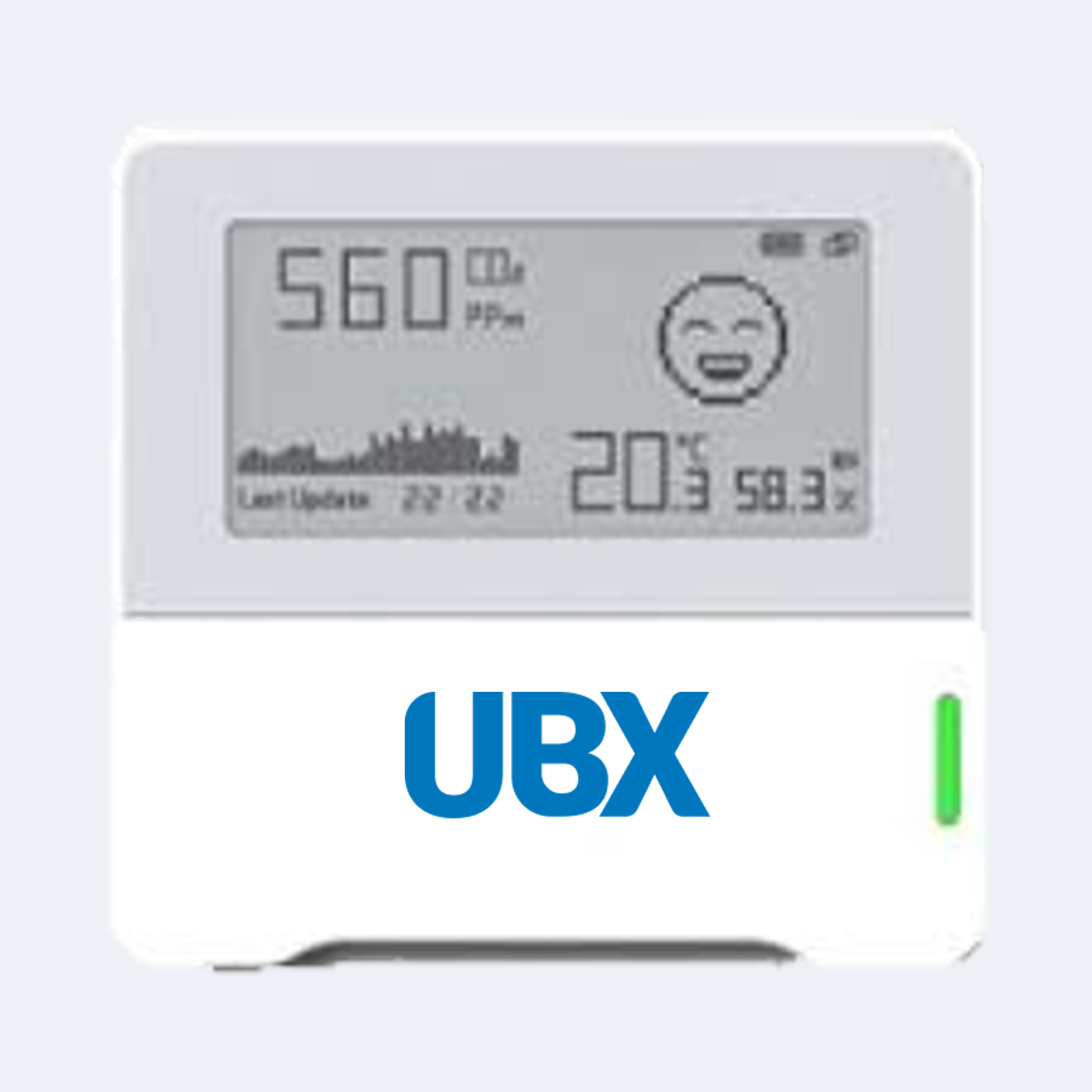

Indoor Air Quality Monitoring

The UBX Comfort and Indoor Air Quality (IAQ) monitoring product enables you to quickly and easily add IAQ sensors to any setting, helping you to optimize your occupants experience, improve their performance, and reduce health risks. Understand the indoor air quality of your spaces including meeting rooms, gathering areas, dining rooms, kitchens, etc. to optimize your buildings HVAC and ventilation systems while identifying areas to improve occupant comfort.

Details:

  • Up to 10+ year battery life
  • Theft prevention wall mounting
  • Long range, resilient data connection

Options:

  • UBX IAQ Basic Sensor - CO2, tVOC, humidity, and temperature
  • UBX IAQ Advanced Sensor (Basic Sensor +) - Expanded particulate detection including PM2.5 and PM10, Basic occupancy detection
  • UBX IAQ Solar (Basic Sensor +) - Solar powered (no batteries), Screenless

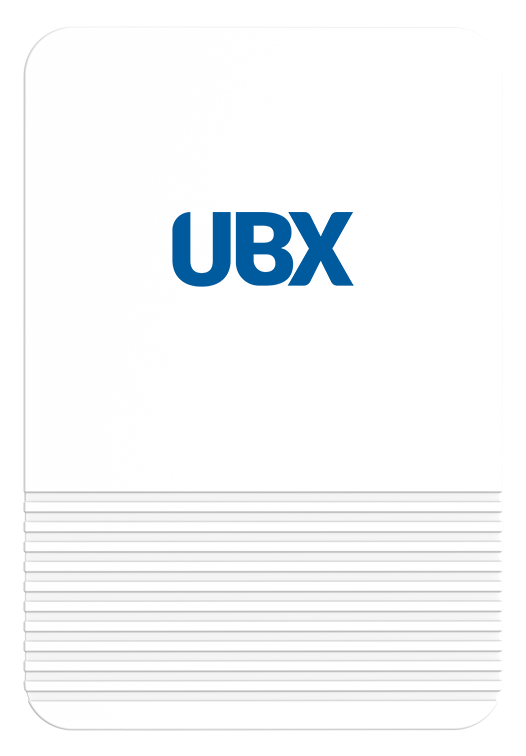

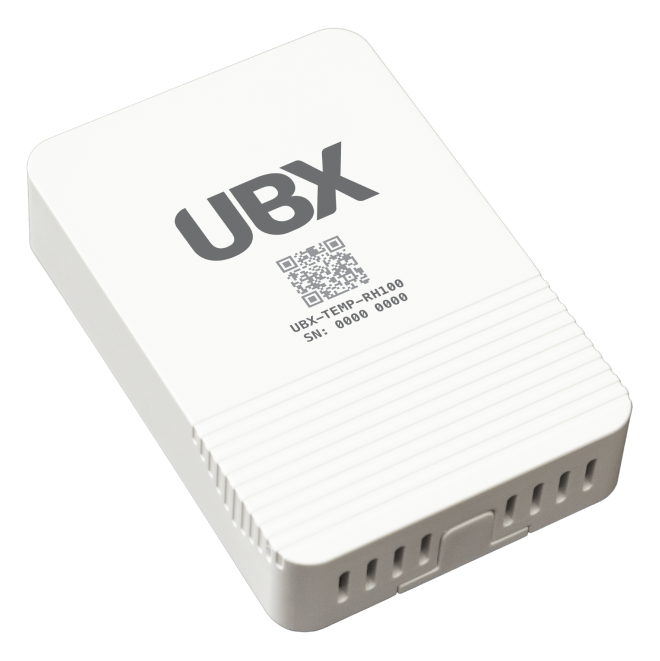

Refrigeration & Temperature Monitoring

The magnetic, waterproof, and wireless UBX Refrigeration and Temperature Monitoring solution is simple to install and prevents inventory loss and food spoilage through programmable alarms. The sensors are waterproof, small, and provide long range signals that can easily penetrate walls allowing them to be deployed in nearly any location

Details:

  • Magnetic and standard mounting

  • Food-safe and IP67 waterproof enclosure

  • Temperature (-30C to 60C) and Relative humidity (0-100% RH)

  • More than 5 year battery life

Options:

  • UBX Temperature and Humidity Sensor

Occupancy Monitoring

UBX’s Occupancy Monitoring solution provides valuable insights into how a space is being used, enabling you to make better decisions about space allocation, energy efficiency, and occupant comfort. Using real-time and historical data, you gain insights into how your office floors, dining rooms, and open spaces are being used, giving you visibility into how much space your organization requires and data to drive space optimization strategies.

Details:

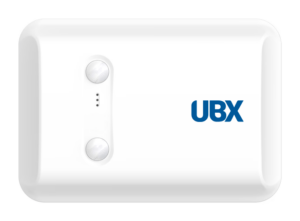

Simple Occupancy Counter

  • Wide Detection Range includes 80° Horizontal and  55° Vertical
  • Provides Vacant & Occupied sensing based on motion detection
  • Up to 10-year battery life
  • 100% anonymity and GDPR-compliant without image capturing, free from privacy concerns

Indoor Passage Counter

  • Person Counter Accuracy: Single Person up to 95%, Multiple people up to 80%
  • 2m to 3m detection range
  • Up to 4-year battery life
  • 100% anonymity and GDPR-compliant without image capturing, free from personal privacy concerns

Options:

  • UBX Simple Occupancy Sensor

  • UBX Indoor Passage Counter

Controls

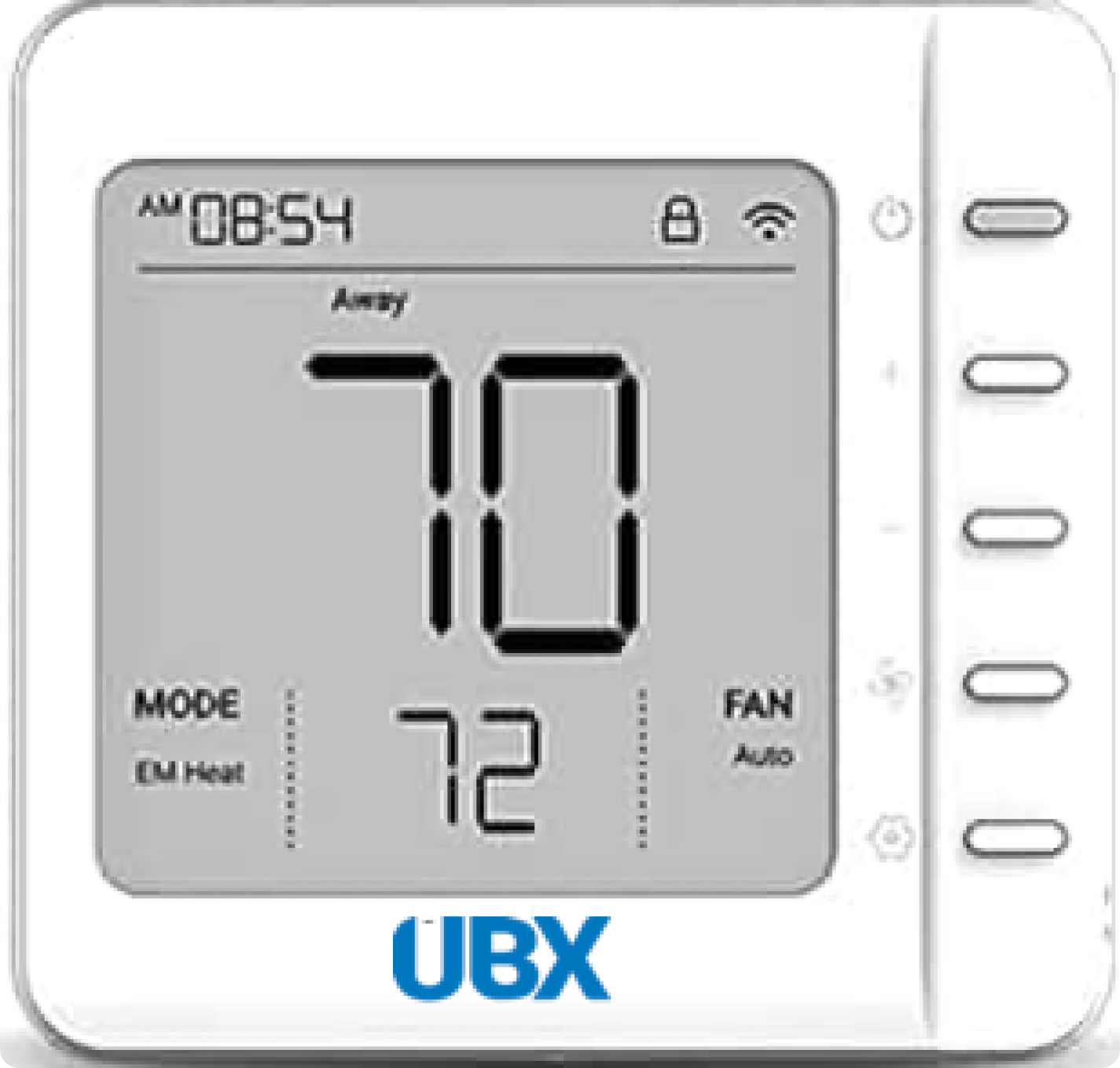

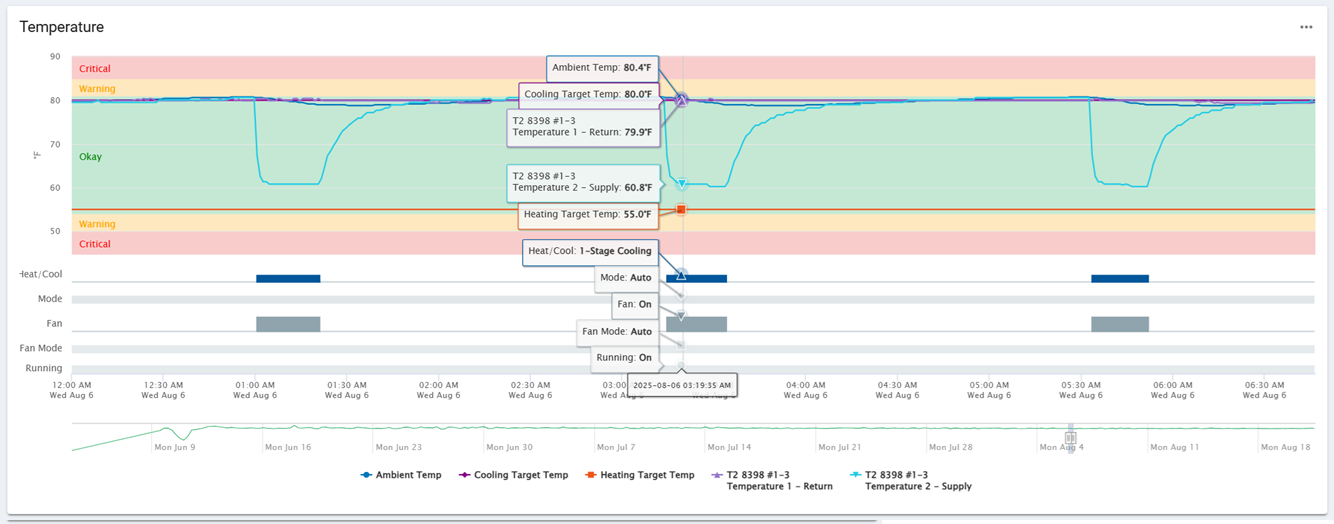

Smart Thermostat

UBX’s Smart Thermostat solution enables reduced heating and cooling costs through smart heating and cooling using schedules, occupancy, outside temperatures, local weather forecasts, and time of day energy costs.

Details:

  • Supports most 24VAC HVAC system, including furnaces and air conditioners (2H/2C), heat pumps (4H/2C) + 1 stage AUX heat), boilers, and PTAC systems
  • Supports screen lock and provides anti-theft protection
  • Offers 4 temperature control modes and 3 fan modes
  • Real-time and historical monitoring

Options:

  • UBX Smart Thermostat

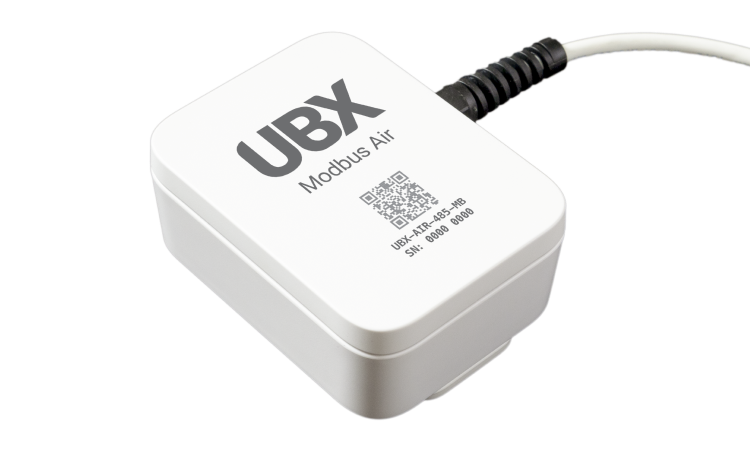

BACnet Air & Modbus Air

UBX’s advanced bi-directional wireless BACnet and Modbus capabilities enable you to add wireless monitoring capabilities to your existing wired equipment or migrate control of your existing equipment to the unified UBX Smart Building System. Transform your building with the UBX wireless control and monitoring devices simplifying installation and expanding your visibility into your buildings status and health.

Details:

  • 8-60V DC power

  • RS-485 2-wire serial supports Modbus RTU (and BACnet MS/TP)

  • Over-the-Air Firmware Updates

Options:

  • UBX Modbus Air

  • UBX BACnet Air
